RAZ Panel Information (Bundles of 9)

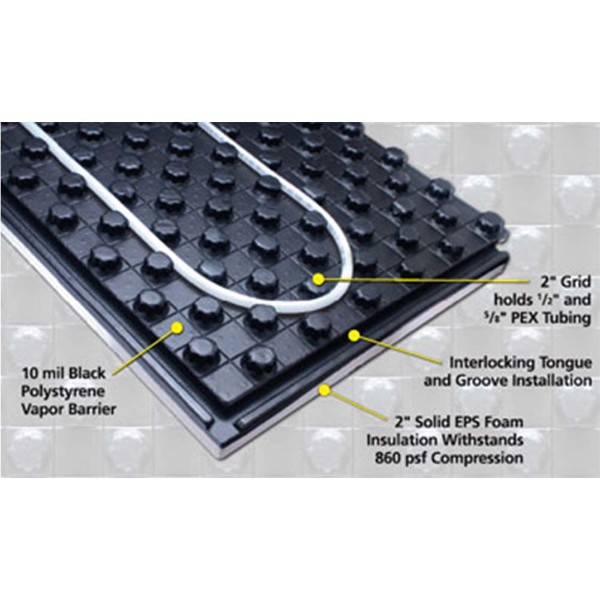

The Raz Panel insulated floor panel system from EZ Floor, Inc. is insulation, vapor barrier and Pex tube fastener all in one. An easy three-step installation means you could save up to 66% of the insulation cost on energy efficient in-floor radiant heat!
| Grid Size |
2" Grid for 1/2", 5/8" or 3/4" Pex tubing |
| Board Size |
25" x 49" |
| Effective Area |
24" x 48" |
| Nominal Thickness of Insulation |
1" or 2" |
| Total Thickness |
1 7/8" or 2 7/8" |
| Color |
Varies |
| Thermal Resistance (ASTM C518-04) |
R-5.9, R-11.9 |
| Compressive Resistance (ASTM C165-00) |
430-860 psf |
| Perm Resistance (ASTM E96-00) |
.56 perms |
| WI Building Products Evaluation Number |
200521-1 |
All product testing was conducted by Intertek ETL Semko, an independent testing lab. All tests were performed in accordance with ASTM C518-04 "Standard Specification for Rigid Cellular Polystyrene Thermal Insulation" modified to assess the flooring panels as an entire entity and not just the rigid, cellular polystyrene thermal insulation.
Ordering and Shipping RAZ Panels™
The RAZ Panels™ come shipped in bundles of 9 panels. The dimensions of the bundles are 24.75” high x 25.25” wide x 49.25” long and weigh approximately 31 pounds.
Panels are sold in complete bundle quantities only. To arrive at the quantity required divide the square footage needed by 72. There are 72 square feet of product in each bundle.
For example: 2,500 / 72 = 34.72 bundles. Then simply round up to the next whole bundle or in this case, 35, and with a waste factor of about 1% that is what you will need to order for the 2,500 square foot project.
