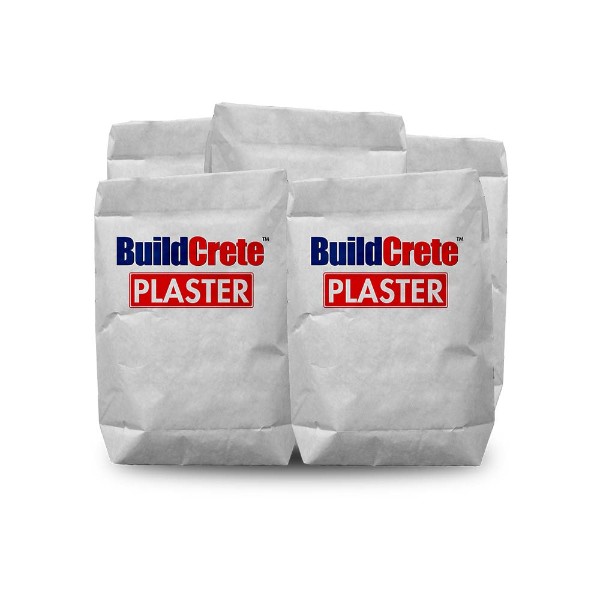

BuildCrete Plaster

Item: 00-BC-PLASTER

Description

Description

BuildCrete™ Plaster is an ultra-high-performance finish for architectural and industrial applications. This abuse-resistant interior veneer plaster is designed for buildings that require extreme abrasion resistance.

BuildCrete Plaster is a single product application that provides the ultimate in resistance to abrasion and indent far exceeding abuse type drywall. This product is formulated for industrial strengths exceeding 8,500 psi and provides an attractive, smooth or textured finish over a variety of substrates, such as gypsum board, cement board, CMU block, mag-board, fiber board, monolithic concrete and unit masonry. Typical application thicknesses is 3/16″depending on the needs abuse resistance. For more information visit http://buildblock.com/products/buildcrete-stucco-plaster/

The BuildCrete Plaster mix contains all needed ingredients so no sand is added at the jobsite to minimize the risk of mixing errors. Produced using envirnmentaly-friendly manufacturing techniques, BuildCrete™ Plaster is easy to mix and apply using conventional plaster tools and techniques. It is applied in a scratch and double-back one-coat application along with a 4.5 oz or 11 ounce or heavier fiberglass mesh depending on the abuse resistance needed. For texture finishes, complete texturing after the plaster has firmed up and before the final set. Polyurethane roller texture finishes can also be used and rapidly finished. One thin coat is applied directly over the EPS foam, a fiberglass mesh is embedded and then covered over with the same material giving about 3/16″ finished thickness.

BuildCrete Plaster was specifically developed for the toughest industrial applications, but it is also an ideal finish for walls in homes, schools, universities, restaurants, medical facilities, hotels, commercial offices, government/military buildings, correctional facilities, multi-family housing, and other high-traffic, high-abuse applications. The strength and abrasion and abuse-resistance features also provide the means for reduced long-term maintenance costs. Architects and designers can also take advantage of the wide range of decorative options of this product. Besides many types of smooth and textured finishes, BuildCrete™ Plaster can be easily painted or stained. It is designed to be environmentally responsible and emits zero pollutants, and uses less water than similar products currently on the market.

All BuildCrete Plaster products exceed USEPA and California indoor air quality and VOC standards and conserve water compared to other similar products. Abuse-resistant features such as resistance to cracking, indentation and abrasion, coupled with ease of installation, fire protection, design options, and resistance to mold and gives BuildCrete™ Plaster unparalleled versatility inside any structure.

A Level III (highest) abuse resistance is achieved by applying a 3/16″ thickness and it replaces fragile 1/2″or 5/8″ gypsum board over ICF walls and ceilings. BuildCrete™ Plaster™ is tested and code approved for ICF’s to ASTM E-136, ASTM E-84 and NFPA-286 code compliance by Intertek.

Each 75 lb. (34 kg) of BuildCrete Plaster covers approximately 42 sq. ft. (4.2 m2) at an approximate thickness of 3/16 in (4.8 mm).

BuildCrete Plaster Benefits

  • Provides a hard, durable single 3/16-inch thick coat applied directly over EPS, up to 8500+ PSI compressive strength.
  • Easy to mix using standard plaster tools & techniques.
  • Applied in a scratch and double-back one-coat with a fiberglass mesh.
  • Easily painted or stained.
  • Roller textures and other finishes can be applied rapidly.
  • Environmentally friendly.
  • Emits ZERO pollutants.
  • Uses less water than other products.
  • USEPA & CA indoor air quality VOC standards.
  • Resists cracking, indenting, and abrasion.
  • Code approved and tested to ASTM E-136, ASTM E-84 and NFPA-286. standards.

General Specs

General Specs

General Specifications

SPECIFICATION Imperial Metric
Expanded Polystyrene density 1.5 lbs./cu.ft. 24.02769 kg/m3
Average thickness of EPS 2½” per panel (5” total) 12.7cm (6.35cm per panel)
Material R-value R-22 Foam Value R-22 Foam Value
Performance R-value
(concrete, form R-value, air infiltration reduction, and thermal mass)
R-30 to R-52 R-30 to R-52
U 0.33 to U 0.02
Actual R-value per inch of EPS Foam 4.2/inch
Thermal Mass (form & concrete) 4” Core: 47.5 lbs./ft2
6” Core: 72 lbs/ft2
8” Core: 96 lbs/ft2
10” Core: 119 lbs/ft2
12” Core: 143 lbs/ ft2
4” Core: 231.9 kg/m2
6” Core: 351.5 kg/m2
8” Core: 468.7 kg/m2
10” Core: 581.0 kg/m2
12” Core: 698.2 kg/m2
K-Factor .24/inch
Water absorption - 3% (ASMC272) - 3% (ASMC272)
Water vapor 0.56 perms per 2½” Panel 0.84 metric perms per 2½” Panel
Sound class 52 with ½” sheet rock on inside 52 with ½” sheet rock on inside
Fire wall 3 Hour Fire Rating on BB-600 Wall (Loading 5,000 lb. per lineal feet throughout test.)
(Post test loading 12,000 lbs. per lineal foot with no additional depletion.)
3 Hour Fire Rating on BB-600 Wall (Loading 7440.6 kg/m throughout test.)
(Post test loading 17857.9 kg/m with no additional depletion.)
Concrete compressive strength Recommended 3000 psi minimum Recommended 20 MPa minimum
Recommended concrete pouring temperature* 15°F to 120°F* (-9°C to 49°C)*
*Properly handled, specially formulated concrete can be poured at temperatures as low as -15ºF (-26ºC). Consult your ready mix company. Important: At temperatures below freezing, you must cover all exposed concrete with insulating material.

ASTM Standards Product Testing

BuildBlock ICFs are evaluated to ensure they meet or exceed a variety of industry standards tests. Visit http://buildblock.com/technical-support/product-testing/ for more information.

Properties ASTM TEST RANGE REQUIRED TEST VALUE
Density ASTM D1622 1.5lb/ft³ 1.69lb/ft²
Thermal Resistance ASTM C177 4.0F.ft².h/Btu/in 4.08F.ft².h/Btu/in
Compressive Strength ASTM D1621 15.0 psi 23.1 psi
Flexural Strength ASTM C203 40.0 psi 50.4 psi
Flame Spread ASTM E84 25 Maximum >25
Smoke Developed ASTM E84 450 Maximum >450
Fire Wall Rating ASTM E119   3hr
R-Value ASTM C518 R-22 R-22
STC Rating ASTM E413 STC 50 STC 50
Vapor Permanence ASTM E96 3.5 perms/inch Maximum 2.04 perms/inch

Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation

To top
Specification Reference: ASTM C 578-92 Type I Type VIII Type II Type IX
Property   Units ASTM Test
Density, minimum   (pcf) D 303 or D 1622 0.90 1.15 1.35 1.80
Density Ranger   (pcf) C 177 or C 518 0.90-1.14 1.15-1.34 1.35-1.79 1.80-2.20
Thermal Conductivity
K Factor

at 25 F
at 40 F
at 75 F

BTU/(hr.)
(sq.ft.)(F/in.)
  0.23
0.24
0.26
.22
.235
.255
.21
.22
.24
.20
.21
.23
Thermal Resistance at 25 F
at 40 F
at 75 F
at 1 inch thickness   4.35
4.17
3.85
4.54
4.25
3.92
4.76
4.55
4.17
5.00
4.76
4.35
Strength Properties
Compressive 10% Deformation
Flexural
Tensile
Shear
Shear Modulus
Modulus of Elasticity
  psi
psi
psi
psi
psi
psi
D 1621
C 203
D 1623
D 723
_____
_____
10-14
25-30
16-20
18-22
280-320
180-220
13-18
30-38
17-21
23-25
370-410
250-310
15-21
40-50
18-22
26-38
460-500
320-360
25-33
50-75
23-27
33-27
600-640
460-500
Moisture Resistance
WVT
Absorption (vol.)
Capillarity
  perm. in
%
––––
  2.0-5.0
less than 4.0
none
1.5-3.5
less than 3.0
none
1.0-3.5
less than 3.0
none
0.6-2.0
less than 3.0
none
Coefficient of Thermal Expansion   in./(in.)(F) D696 0.000035 0.000035 0.000035 0.000035
Maximum Service Temperature
Long-term Exposure
Intermittent Exposure
      167
180
167
180
167
180
167
180
Oxygen Index   % D 2863 24.0 24.0 24.0 24.0
