4" ThermalSert Foam Insulation Insert for KD

Item: 00-TS-400KD

Qty Per Bundle: 36
Bundle Volume: 69 cu ft

Description

Description

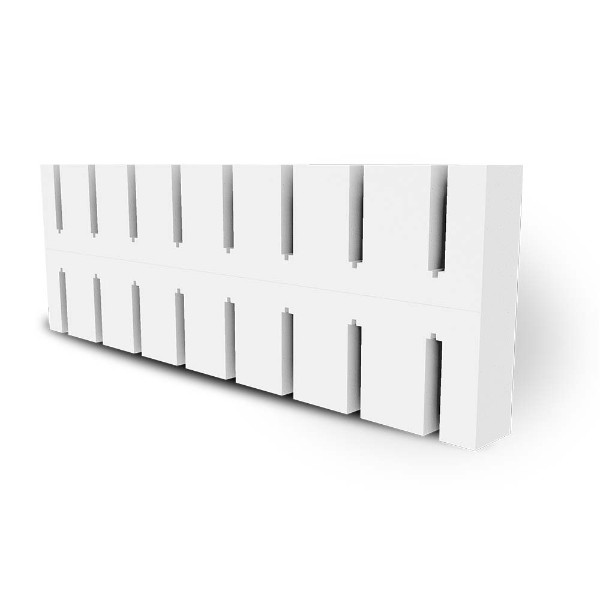

BuildBlock ThermalSert Insulation Insert

BuildBlock ThermalSert are insulation inserts for BuildBlock and BuildLock Knockdown ICF forms. ThermalSert inserts are placed inside the BuildBlock or BuildLock Knockdown ICF forms between each course against the inner edge of the block outside wall side. Each 1-inch of foam insert adds 4.2 R-Value increasing the overall R-value of the wall. The insert is placed toward the outside of the block to insulate against the greatest difference in temperature.

ThermalSert is available in two styles one for BuildBlock ICF forms and another style for BuildLock Knockdown ICF forms. The BuildLock Knockdown web is slightly larger and the TermalSert KD is designed to accommodate the larger web size.

These inserts may be used with any core size form, though reducing the concrete core width too much may create a wall outside the prescriptive code and BuildBlock product engineering. Project-specific engineering may be required if you exceed these design specifications.

When specifying your ICF block size, keep in mind that adding the additional insulation will decrease the concrete core size by the same amount of your insulation insert. You can increase the block core size to compensate. For example, if your project requires an 8-inch finished wall, and you are using a 2-inch ThermalSert insert you would need to utilize a 10-inch BuildLock Knockdown ICF to maintain an 8-inch concrete core.

Using the insert inside the wall is much easier than adding additional insulation on the outside of the wall and maintains full access to the attachment points and block markings.
ThermalSert and ThermalSert KD are available at multiple locations across North America.

Product Specs

Product Specs

BBR-612 Specifications

Specification Imperial Metric
Product ID BBR-612 BBR-612
90° Arc Length 12ft 3.6576m
Block Angle 15° 15°
Outer Arc Length 24in 60.96cm
Inner Arc Length 21.125in 53.6575cm
Straight Section Length 0 0
Panel Height 16in 40.64cm
Outer Panel Surface Area 2.67ft² 0.2477m²
Inner Panel Surface Area 2.35ft² 0.2180m²
Core Footprint 135.36in² 2218.15cm²
Concrete Volume .04642yd³ 0.035490m³
Outer Diameter 15.28ft 4.657344m
Outer Diameter 183.35in 465.734cm
Outer Radius 7.64ft 232.8672cm
Outer Radius 91.67in 2794.1016cm
Inner Diameter 13.45ft 409.96cm
Inner Radius 6.72ft 204.82cm
Circumference 48.ft 14.6304m
EPS Dimension 2½” each panel 63mm each panel
EPS Foam Density 1.5 lbs./cu.ft. 24.02769 kg/m3
EPS Foam Depth 2.5" / 5" Total 6.35cm / 12.7cm Total

Bundle Specifications

Specification Imperial Metric
Bundle Dimensions
Bundle Length
Bundle Width
Bundle Height
Bundle Weight

Quantity Per Bundle



Energy Efficiency Specifications

Specification
Actual R-Value 4.4 Per inch of EPS Foam
Effective R-Value R-24 to R-50
K-Factor .24 Per inch of EPS Foam
Steady State R-Value R-21 Foam Value
U-Value U-0.048
Water Absorption Less than 3% (ASTM C272)
Water Vapor 0.56 perms per 2.5"

Safety Specifications

Specification
Concrete Compressive Strength (psi) 3,000
Concrete Pour Temperature Range Down to 0°F (-18°C)
Firewall Rating 5,000 to 12,000 lbs per lineal foot for 3 hours.
Sound Class 1-sided STC Sound Class rating of 51 with 1/2-inch sheetrock on one side.
Sound Class 2-sided STC Sound Class rating of 54 with 1/2-inch sheetrock on both sides.

General Specs

General Specs

General Specifications

SPECIFICATION Imperial Metric
Expanded Polystyrene density 1.5 lbs./cu.ft. 24.02769 kg/m3
Average thickness of EPS 2½” per panel (5” total) 12.7cm (6.35cm per panel)
Material R-value R-22 Foam Value R-22 Foam Value
Performance R-value
(concrete, form R-value, air infiltration reduction, and thermal mass)
R-30 to R-52 R-30 to R-52
U 0.33 to U 0.02
Actual R-value per inch of EPS Foam 4.2/inch
Thermal Mass (form & concrete) 4” Core: 47.5 lbs./ft2
6” Core: 72 lbs/ft2
8” Core: 96 lbs/ft2
10” Core: 119 lbs/ft2
12” Core: 143 lbs/ ft2
4” Core: 231.9 kg/m2
6” Core: 351.5 kg/m2
8” Core: 468.7 kg/m2
10” Core: 581.0 kg/m2
12” Core: 698.2 kg/m2
K-Factor .24/inch
Water absorption - 3% (ASMC272) - 3% (ASMC272)
Water vapor 0.56 perms per 2½” Panel 0.84 metric perms per 2½” Panel
Sound class 52 with ½” sheet rock on inside 52 with ½” sheet rock on inside
Fire wall 3 Hour Fire Rating on BB-600 Wall (Loading 5,000 lb. per lineal feet throughout test.)
(Post test loading 12,000 lbs. per lineal foot with no additional depletion.)
3 Hour Fire Rating on BB-600 Wall (Loading 7440.6 kg/m throughout test.)
(Post test loading 17857.9 kg/m with no additional depletion.)
Concrete compressive strength Recommended 3000 psi minimum Recommended 20 MPa minimum
Recommended concrete pouring temperature* 15°F to 120°F* (-9°C to 49°C)*
*Properly handled, specially formulated concrete can be poured at temperatures as low as -15ºF (-26ºC). Consult your ready mix company. Important: At temperatures below freezing, you must cover all exposed concrete with insulating material.

ASTM Standards Product Testing

BuildBlock ICFs are evaluated to ensure they meet or exceed a variety of industry standards tests. Visit http://buildblock.com/technical-support/product-testing/ for more information.

Properties ASTM TEST RANGE REQUIRED TEST VALUE
Density ASTM D1622 1.5lb/ft³ 1.69lb/ft²
Thermal Resistance ASTM C177 4.0F.ft².h/Btu/in 4.08F.ft².h/Btu/in
Compressive Strength ASTM D1621 15.0 psi 23.1 psi
Flexural Strength ASTM C203 40.0 psi 50.4 psi
Flame Spread ASTM E84 25 Maximum >25
Smoke Developed ASTM E84 450 Maximum >450
Fire Wall Rating ASTM E119   3hr
R-Value ASTM C518 R-22 R-22
STC Rating ASTM E413 STC 50 STC 50
Vapor Permanence ASTM E96 3.5 perms/inch Maximum 2.04 perms/inch

Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation

Specification Reference: ASTM C 578-92 Type I Type VIII Type II Type IX
Property   Units ASTM Test
Density, minimum   (pcf) D 303 or D 1622 0.90 1.15 1.35 1.80
Density Ranger   (pcf) C 177 or C 518 0.90-1.14 1.15-1.34 1.35-1.79 1.80-2.20
Thermal Conductivity
K Factor

at 25 F
at 40 F
at 75 F

BTU/(hr.)
(sq.ft.)(F/in.)
  0.23
0.24
0.26
.22
.235
.255
.21
.22
.24
.20
.21
.23
Thermal Resistance at 25 F
at 40 F
at 75 F
at 1 inch thickness   4.35
4.17
3.85
4.54
4.25
3.92
4.76
4.55
4.17
5.00
4.76
4.35
Strength Properties
Compressive 10% Deformation
Flexural
Tensile
Shear
Shear Modulus
Modulus of Elasticity
  psi
psi
psi
psi
psi
psi
D 1621
C 203
D 1623
D 723
_____
_____
10-14
25-30
16-20
18-22
280-320
180-220
13-18
30-38
17-21
23-25
370-410
250-310
15-21
40-50
18-22
26-38
460-500
320-360
25-33
50-75
23-27
33-27
600-640
460-500
Moisture Resistance
WVT
Absorption (vol.)
Capillarity
  perm. in
%
––––
  2.0-5.0
less than 4.0
none
1.5-3.5
less than 3.0
none
1.0-3.5
less than 3.0
none
0.6-2.0
less than 3.0
none
Coefficient of Thermal Expansion   in./(in.)(F) D696 0.000035 0.000035 0.000035 0.000035
Maximum Service Temperature
Long-term Exposure
Intermittent Exposure
      167
180
167
180
167
180
167
180
Oxygen Index   % D 2863 24.0 24.0 24.0 24.0
