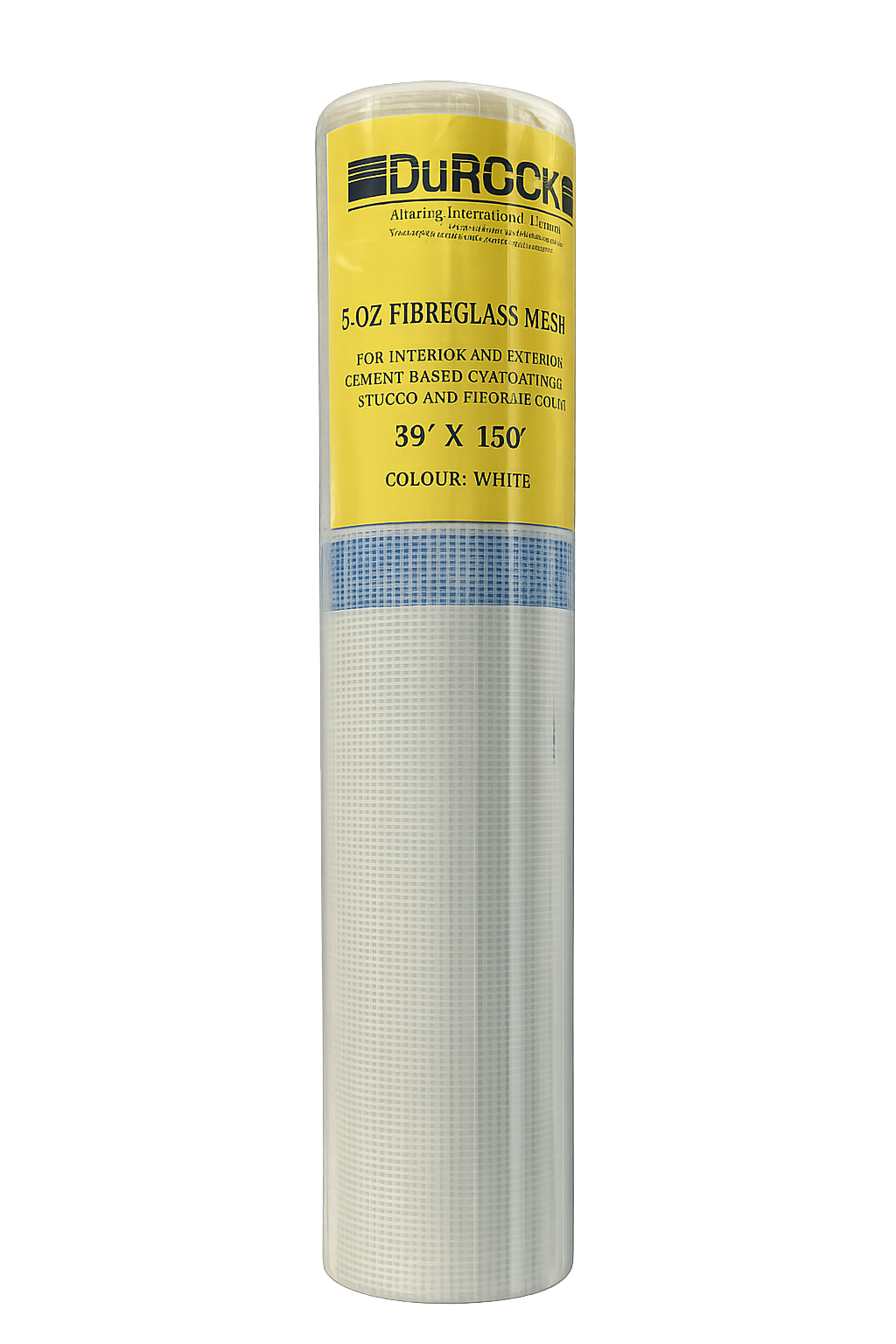

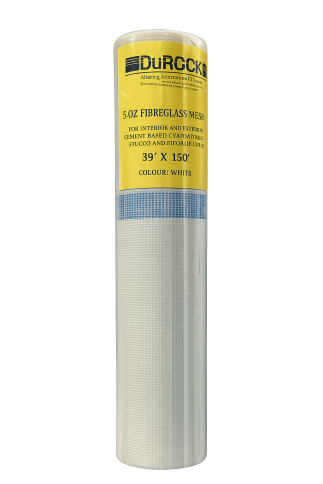

DuRock 5 oz Fibreglass Reinforcing Mesh (39" x 144' roll)

Mesh for DuROCK Exterior Insulation Finish Systems is made of alkali-resistant fiberglass. All mesh is made by a DuROCK-approved manufacturer with DuROCK’s logo plainly visible on the 5-ounce product.

5 oz Reinforcing Mesh

• Nominal 165 g/m2 (4.9 oz/yd2 ), 1 m x 44 m (39” x 144’)

11 oz Reinforcing Mesh

• Nominal 370 g/m2 (11.0 oz/yd2 ), 965 mm x 22.9 m (38” x 75’)

15 oz Impact Mesh

• Nominal 522 g/m2 (15.4 oz/yd2 ), 965 mm x 22.9 m (38” x 75’)

APPLICATION INSTRUCTIONS

Refer to EIF System specification and details for installation information.

PERFORMANCE REQUIREMENTS

Mesh products have been evaluated by CCMC for compliance with the Technical Guide for EIFS.

• Initial Breaking Strength > 35 N/mm
• Loss of Strength after Alkali Exposure < 50%
• Residual Breaking Strength > 25 N/mm
