SRT: Structurally Reinforced Textile - 60lb roll

Item: 00-HK-SRT

Description

Description

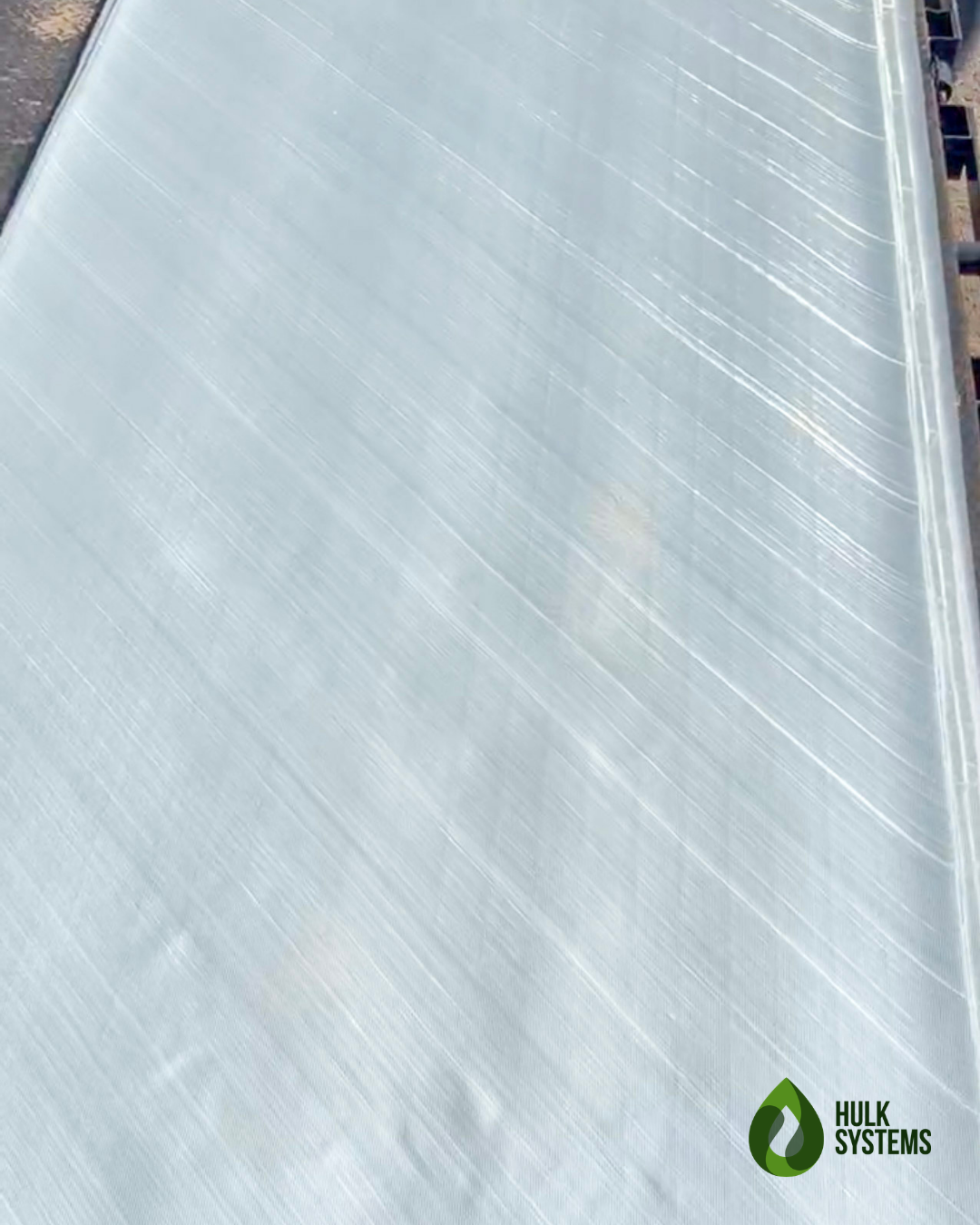

Hulk SRT® is a structurally reinforcing textile (webbing) made of quartz resin-infused fiberglass. It offers higher tensile strength and volumetric mass compared to steel. When used with Hulk WP®, it forms a seamless protective cast over foundation walls. It remains dimensionally stable even under extreme temperature and humidity fluctuations. Additionally, it is used in rocket engine compartments to prevent the spread of heat, commercial oven lining applications, and as an anti-fracture webbing for tile setting and stucco and mortar applications.


Uses

Builder Grade Acrylic Below Grade is suitable for a range of concealed waterproofing applications, including:

  • Rot Proof: Resistant to acid, solvent, and chemicals; dimensionally stable.
  • Non-Combustible: Glass threads and quartz withstand up to 600°C; features low thermal conductivity.
  • Pest Deterrent: Nearly all pests from roaches to mice are deterred when they attempt to chew through this woven fiberglass material.
  • Extreme Strength: High abrasion and vibration resistance, excellent impact resistance, and flexibility.

Product Specs

Product Specs

Fiber Architecture Data
Angle Weight (lbs/Sq. Ft.)
0° N/A
+45° 0.063
90° N/A
-45° 0.063
Chopped Mat 0.056



Laminated Properties (Open Mold)
Property
Fiber Weight 0.182 lbs/sq. ft.
Resin Weight 0.337 lbs/sq. ft.
Combined Weight 0.519 lbs/sq. ft.
Density 95.818 lbs/sq. ft.
Fiber Content 35.1% by Weight
Thickness (Cured) 65 dry mils (0.065") after coating has cured
Laminate Moduli (Ex, Ey) 12.87 GPa
Laminate Moduli (Gxy) 2.8 GPa
Stress (Tensile, Long) 210.8 MPa
Stress (Compressive, Long) 293.1 MPa
Stress (Tensile, Transverse) 210.8 MPa
Stress (Compressive, Transverse) 293.1 MPa
Stress (In-Plane Shear) 91.8 MPa



General Specs

General Specs

Physical Properties
Property Value
Type E-Glass Fiberglass
Color White
Architecture +45° / - 45° Double Bias
Thickness 0.046"
Weight 0.182 lbs./sq. ft.
  1.35-1.45 g/cm³



Packaging Data
Attribute Value
Roll Width 50"
Roll Length 67.5'
Roll Weight 62 lbs
Coverage 450 sq. ft.
