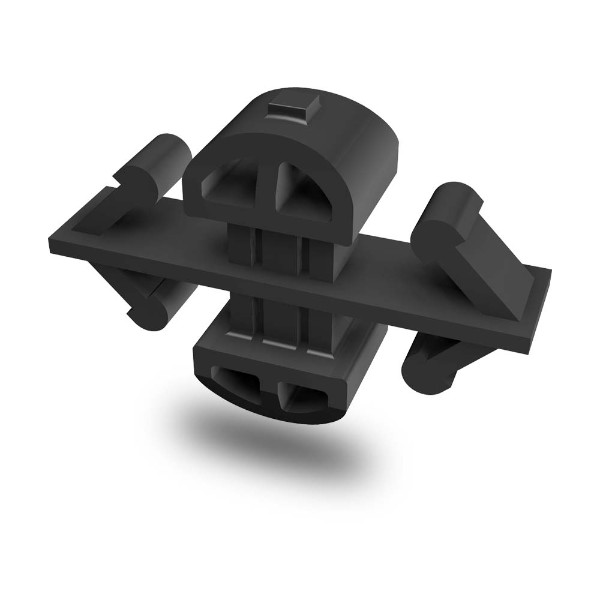

BuildLock KD Bridge Connector (256 per box)

Item: 00-BL-CONNECTOR

Qty Per Bundle: 256
Bundle Volume: 1 cu ft

Description

Description

The KD Bridge Connector is used to connect two KD webs together to create larger ICF cores. This easily integrates pilasters into ICF walls and create insulated footings and foundations.

KnockDown Hardwall Connectors come 256 per box

Box size and weight vary depending on which plant it ships from. Dimensions below are an approximation.
Box Dimensions: 18x12x9
Box Weight: 12 LBS
Boxes per Pallet: 30

The BuildLock Knockdown ICF System

The BuildLock Knockdown ICF System is a high-performance knock-down insulating concrete form (ICF) wall system comprised of two separate 2½ inch Expanded Polystyrene (EPS) panels which are connected by strong, high-density plastic webs on 6-inch centers. BuildLock is the strongest knock-down product on the market today.
Each web bridge features a 3-axis positive locking attachment that snaps the web securely in the proper position to eliminate racking and provide superior structural stability throughout the construction process. The BuildLock Knockdown block exceeds even the superior strength of BuildBlock ICF blocks.

Why BuildLock Knockdown

  • Available in 4”, 6”, 8”, 10”, 12” or greater core widths.
  • BuildLock’s patented web is the strongest web on the market.
  • Double-reinforced corner webs on 10” and 12” forms for safer pours and more attachment points.
  • Expandable core for larger sizes (24”+) with optional bridge connectors.
  • Blocks ship flat to reduce shipping costs and increase product storage capacity.
  • Larger rebar saddles for multiple rebar sizes.
  • Reinforced web flanges for additional strength.
  • Simple, quick on-site assembly.
  • Completely reversible webs for multiple rebar locations and 8” horizontal spacing.
  • Connect multiple webs for special construction needs such as pilasters.
  • Use BuildBlock Hardwall to create an ICF wall with bare concrete on one side.

Knockdown Advantages

  • Commercial ICF block for projects requiring 4” to 12”+ concrete cores.
  • Patented strongest ICF web design on 6” centers.
  • Build 4”-24”+ walls using optional bridge clip connector.
  • Integrate pilasters into ICF walls.
  • Create insulated footings and foundations.
  • Designed to easily allow 8” horizontal rebar spacing in large commercial projects.
  • Tilt up & retrofit insulation applications.
  • On-site assembly for integration of pre-set penetrations such as blast-proof door and window frames.

BuildLock ICF Benefits

  • Fully reversible blocks and webs.
  • Numbered vertical cut lines every
  • 1-inch and horizontal cut lines every 2-inches.
  • Tight interlocking blocks with 100% surface-to-surface connections eliminating costly ties and accessories.
  • High-Density Plastic Webs with 2 Extra Heavy Duty Attachment Points (450lb.+ pullout) on each web.
  • Form and insulate in one step and use any finish application including BuildBlock Hardwall.
  • 4-hour fire rating and low sound transmission.
  • Fully integrates with all other BuildBlock ICF Products.

General Specs

General Specs

General Specifications

SPECIFICATION Imperial Metric
Expanded Polystyrene density 1.5 lbs./cu.ft. 24.02769 kg/m3
Average thickness of EPS 2½” per panel (5” total) 12.7cm (6.35cm per panel)
Material R-value R-22 Foam Value R-22 Foam Value
Performance R-value
(concrete, form R-value, air infiltration reduction, and thermal mass)		 R-30 to R-52 R-30 to R-52
U 0.33 to U 0.02
Actual R-value per inch of EPS Foam 4.2/inch
Thermal Mass (form & concrete) 4” Core: 47.5 lbs./ft2
6” Core: 72 lbs/ft2
8” Core: 96 lbs/ft2
10” Core: 119 lbs/ft2
12” Core: 143 lbs/ ft2		 4” Core: 231.9 kg/m2
6” Core: 351.5 kg/m2
8” Core: 468.7 kg/m2
10” Core: 581.0 kg/m2
12” Core: 698.2 kg/m2
K-Factor .24/inch
Water absorption - 3% (ASMC272) - 3% (ASMC272)
Water vapor 0.56 perms per 2½” Panel 0.84 metric perms per 2½” Panel
Sound class 52 with ½” sheet rock on inside 52 with ½” sheet rock on inside
Fire wall 3 Hour Fire Rating on BB-600 Wall (Loading 5,000 lb. per lineal feet throughout test.)
(Post test loading 12,000 lbs. per lineal foot with no additional depletion.)		 3 Hour Fire Rating on BB-600 Wall (Loading 7440.6 kg/m throughout test.)
(Post test loading 17857.9 kg/m with no additional depletion.)
Concrete compressive strength Recommended 3000 psi minimum Recommended 20 MPa minimum
Recommended concrete pouring temperature* 15°F to 120°F* (-9°C to 49°C)*
*Properly handled, specially formulated concrete can be poured at temperatures as low as -15ºF (-26ºC). Consult your ready mix company. Important: At temperatures below freezing, you must cover all exposed concrete with insulating material.

ASTM Standards Product Testing

BuildBlock ICFs are evaluated to ensure they meet or exceed a variety of industry standards tests. Visit http://buildblock.com/technical-support/product-testing/ for more information.

Properties ASTM TEST RANGE REQUIRED TEST VALUE
Density ASTM D1622 1.5lb/ft³ 1.69lb/ft²
Thermal Resistance ASTM C177 4.0F.ft².h/Btu/in 4.08F.ft².h/Btu/in
Compressive Strength ASTM D1621 15.0 psi 23.1 psi
Flexural Strength ASTM C203 40.0 psi 50.4 psi
Flame Spread ASTM E84 25 Maximum >25
Smoke Developed ASTM E84 450 Maximum >450
Fire Wall Rating ASTM E119   3hr
R-Value ASTM C518 R-22 R-22
STC Rating ASTM E413 STC 50 STC 50
Vapor Permanence ASTM E96 3.5 perms/inch Maximum 2.04 perms/inch

Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation

Specification Reference: ASTM C 578-92 Type I Type VIII Type II Type IX
Property   Units ASTM Test
Density, minimum   (pcf) D 303 or D 1622 0.90 1.15 1.35 1.80
Density Ranger   (pcf) C 177 or C 518 0.90-1.14 1.15-1.34 1.35-1.79 1.80-2.20
Thermal Conductivity
K Factor

at 25 F
at 40 F
at 75 F

 BTU/(hr.)
(sq.ft.)(F/in.)		   0.23
0.24
0.26		 .22
.235
.255		 .21
.22
.24		 .20
.21
.23
Thermal Resistance at 25 F
at 40 F
at 75 F		 at 1 inch thickness   4.35
4.17
3.85		 4.54
4.25
3.92		 4.76
4.55
4.17		 5.00
4.76
4.35
Strength Properties
Compressive 10% Deformation
Flexural
Tensile
Shear
Shear Modulus
Modulus of Elasticity		   psi
psi
psi
psi
psi
psi		 D 1621
C 203
D 1623
D 723
_____
_____		 10-14
25-30
16-20
18-22
280-320
180-220		 13-18
30-38
17-21
23-25
370-410
250-310		 15-21
40-50
18-22
26-38
460-500
320-360		 25-33
50-75
23-27
33-27
600-640
460-500
Moisture Resistance
WVT
Absorption (vol.)
Capillarity		   perm. in
%
––––		   2.0-5.0
less than 4.0
none		 1.5-3.5
less than 3.0
none		 1.0-3.5
less than 3.0
none		 0.6-2.0
less than 3.0
none
Coefficient of Thermal Expansion   in./(in.)(F) D696 0.000035 0.000035 0.000035 0.000035
Maximum Service Temperature
Long-term Exposure
Intermittent Exposure		       167
180		 167
180		 167
180		 167
180
Oxygen Index   % D 2863 24.0 24.0 24.0 24.0
